10/100/100Mbps to SFP Socket Media Converter
FOB Price :
$ 1.00 - $ 20.00 / PCS
Supply Ability :
50000  PCS/ Month
CIF Price :
Please contact the supplier to get the latest CIF price.
Min.Order :
 PCS
Quantity :
-
+
Total Cost :
Add to My Favorites
Share product to: facebook twitter qq weixin sina
Download QR Code
Model :TBC-L36SFP
Payment Terms : T/T,  Other
Delivery Port : shenzhen
delivery Time : 3-5
Product Advantages : Well and High Quality Control,  Prompt Delivery,  New Product,  Customer‘s Design and Logo are Welcome,  Competitive Prices,  Earth-friendly Products,  In a Variety of Design,  Small Order Acceptable,  ODM Accepted,  OEM Accepted,  Other
Packing Information
Pcs/Carton:  80 Packing Size/Carton:  505*420*575mm
Packing Vol/Carton:  0.12 m³ N.W./Carton:  24.0 kg
G.W./Carton:  30.0 kg QTY in 40HQ:  N/A
QTY in 40GP:  N/A QTY in 20GP:  N/A
Product Introduction

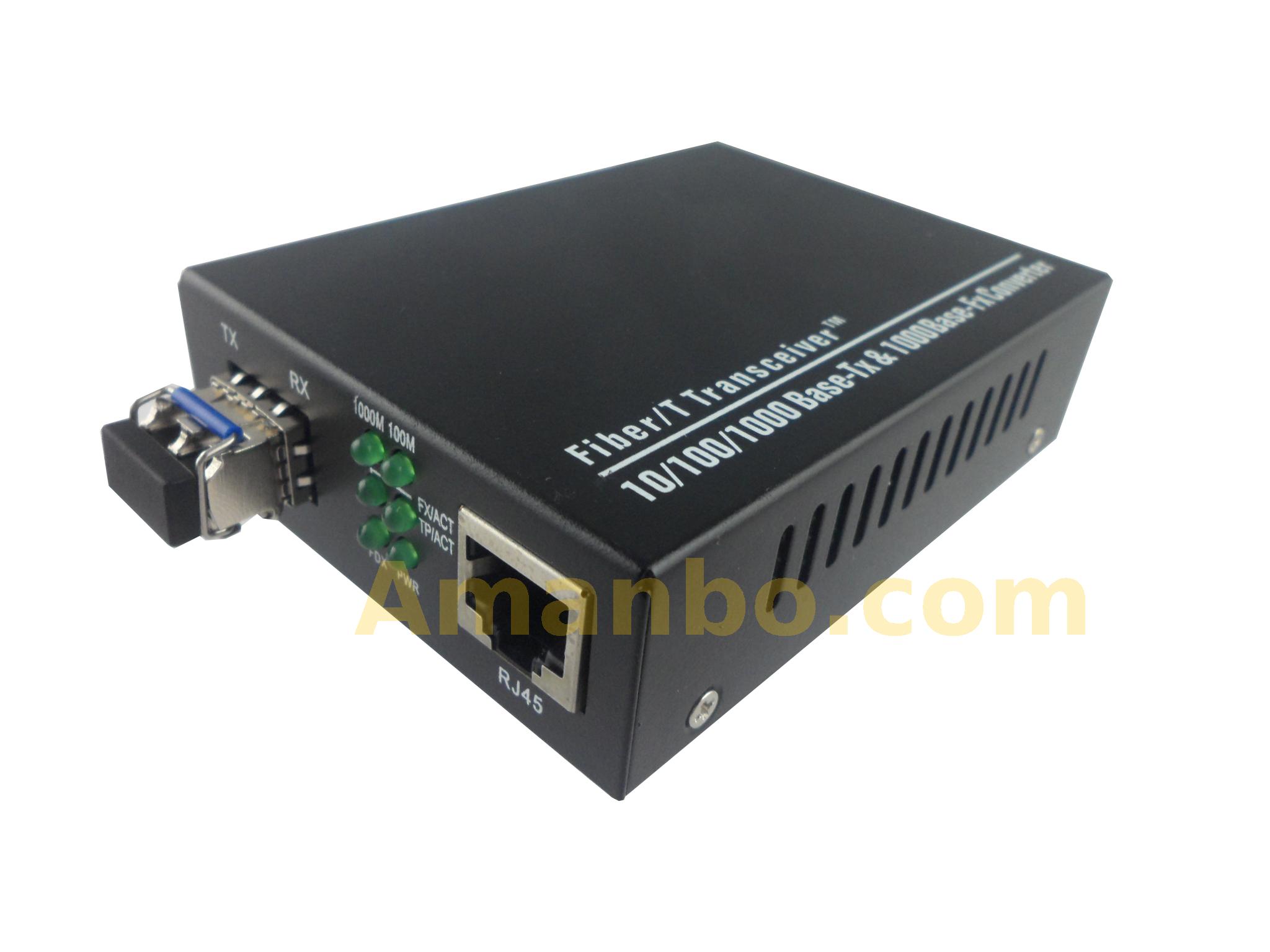

10/100/100Mbps to SFP Socket Media Converter

Features:

  • Half or full duplex auto-negotiation.
  • 10/100/1000 Mbps auto-negotiation for copper port.
  • Auto MDI/MDI-X on copper port.
  • Plug-and-play installation.
  • Extend network distance base on the SFP module
  • Fiber port : LC
  • External power supply.
  • 6 Easy-to-view LED Indicators
  • Build in 14slot media converter chassis.
  • Description:

  • 10/100/1000Mbps to SFP Socket Fiber Media Converter provide an easy and economical solution to upgrade a copper based network to fiber optic to extend the signal reach.Multimode fiber can reach 550m while Single mode fiber max reach to 100km via two fiber.Their plug-and-play design enables a quick and easy installation.It can be used as standalone with their external power supply, or mounted in 14 slot media converter chassis with centralized power

  • Application:

  • Local Area Networks (LAN).
  • Enterprise Networks.
  • Campus Networks.
  • Fiber to the Building (FTTB).
  • Fiber to the Curb (FTTC).
  • Point-to-point fiber networks.
  • Mechanical:

  • Solutions:

  • Specification:

  •

    Protocol

    Standard

    IEEE 802.3    10Base-T

    IEEE 802.3u   100Base-TX

    IEEE 802.3ab  1000Base-T

    IEEE802.3z    1000Base-SX/LX

    Interface

    Rj45 Port

    10/100/1000Mbps, Auto MDI/MDI-X

    UTP/STP Cat. 3, 4, 5 Cable EIA/TIA-568 100-ohm(100m)

    Fiber Ports

    1000Mbps, 1000Base-SX/LX/ZX (SC/ST/FC connector)

    Multi mode: 550m,  Single mode: 0~100km

    LED Indicators

    1000M,100M, FX/ACT, TP/ACT, FDX,PWR

    Performance

    Data Transfer

    10Mbps,100Mbps,1000Mbps

    Environmental

    Temperature

    Operation: 0°C ~55°C;  Store: -20°C ~ 80°C

    Humidity

    5% ~ 95% (Non-condensing)

    Power Supply

    Input Voltage

    AC100-240V;  DC12/-48V

    Output Voltage

    5V/2A

    Consumption

    1~5W

    Mechanical

    Installation

    Rack mounting or desktop

    Dimensions

    95mm*70mm*25mm

    Gross weight

    0.4kg/pcs

    Others

    Certificate

    FCC, CE,RoHS

    Warranty

    3-Year Limited Warranty
